R2R Coating System

DRYER Series

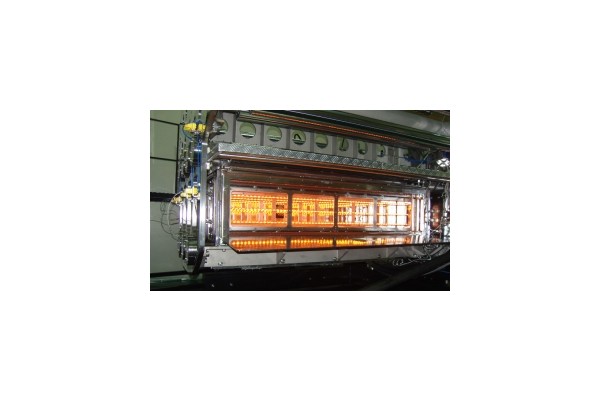

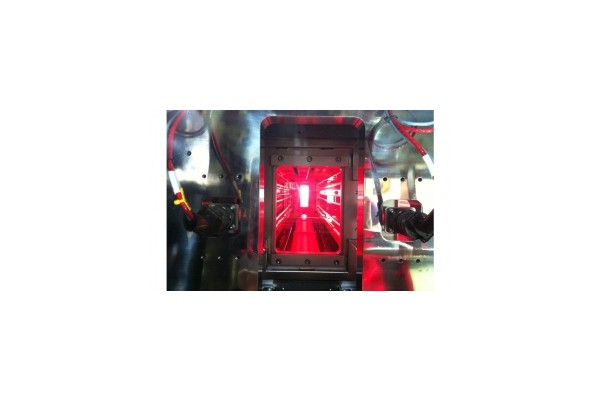

DRYER series is equipment composed of halogen heater and NIR(near infrared ray) heater for heat treatment to enable the removal of moisture and other gas.

Application Products

The DRYER series of Advanced Technologies Co., Ltd can be applied to various application fields using polymer material, and it can remove the outgas ingredient including the moisture in the polymer material that is occurred on using the vacuum coating on the polymer material. By removing this outgas ingredient, the film fabric can be supplied stably in the vacuum coating field using polymer material, to enhance the efficiency of manufacture. Also, it can be used in the post-heat treatment after the vacuum coating, and it can be applied to the field of improving the feature of the coated thin film.

System Specifications

The R2R coating equipment manufacturing method of Advanced Technologies Co., Ltd is based on the customer request specification to manufacture the product in optimum efficiency. Based on this factor, the common specifications below are reflected to manufacture and supply the equipment.


Chamber type Circular Type Single Chamber
Applied material PET, PI, other Flexible polymer film
Core size 3 inch, 6 inch
Material specification Width Length Thickness
Max. 1,600㎜ Max.ø750㎜ Min. 23㎛
Winding speed Max. 30m/min
Pre-treatment method Pre-heat treatment Max. 200℃
Plasma surface treatment DC, Pulse DC, Linear Ion beam Source
Pump Selection of the pump proper to the equipment specification
Measuring instrument RGA
