Plasma source
Sputter Source
Advanced Technologies Co., Ltd is supplying the planar magnetron sputter source applied to the sputter equipment as a separate product to the equipment. Based on many years of equipment manufacturing technology, optimized plasma source applicable to various sputter equipment is provided.
Planar magnetron cathode is provided in Static/Moving magnetron form, and can be applied to various vacuum equipment such as general vacuum coating equipment, In-line sputter equipment, R2R sputter equipment, and cluster coating equipment.
Product Specifications

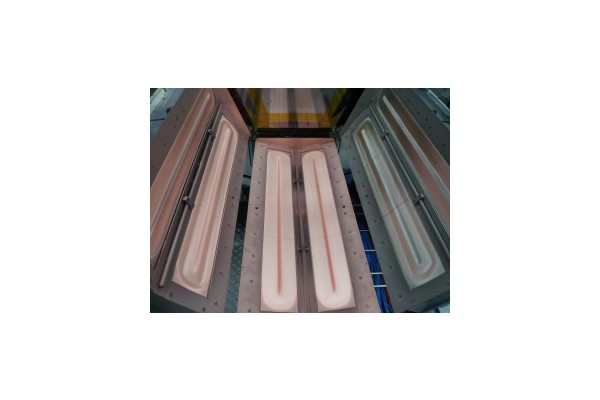

<| Division | Single planar cathode | Dual planar cathode |
| Power supply | DC, Pulse DC, RF | DC, Pulse DC, Bipolar Pulse DC, AC |
| DDR(*) | ≥ 150nmㆍm/min @Cu | ≥ 300nmㆍm/min @Cu |
| ≥ 30nmㆍm/min @ITO | ≥ 50nmㆍm/min @ITO | |

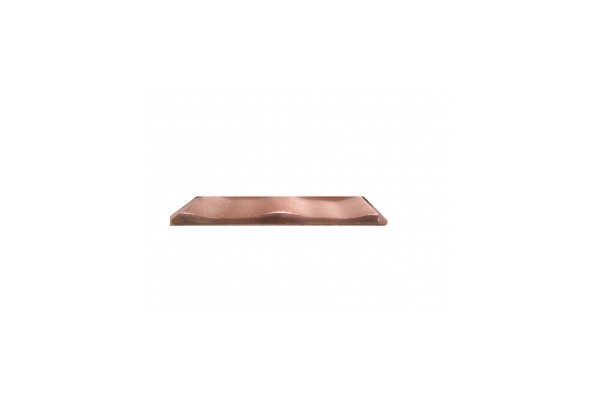

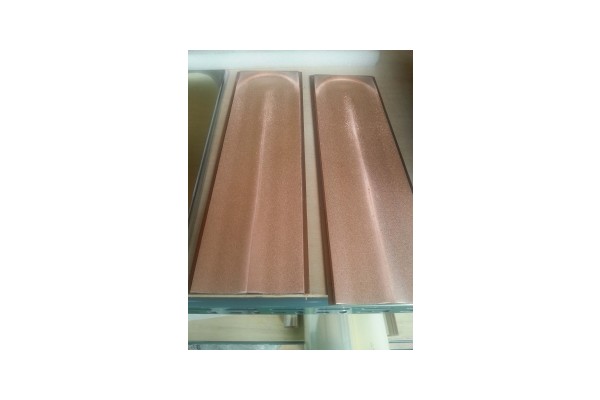

| Target consumption efficiency | ≥ 35% | ≥ 35% |
| Backing plate | Direct / Indirect cooling type | |
| Magnet construction | Static / Moving magnet 방식 | |
| Max. target length | 2,500mm | |
| Applied equipment | In-line / R2R / Cluster / coating equipment for general industry | |
