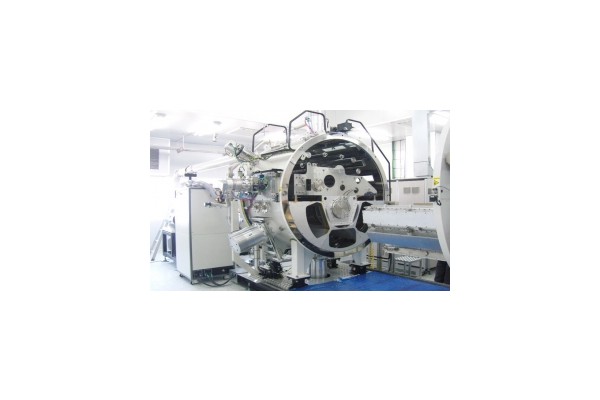

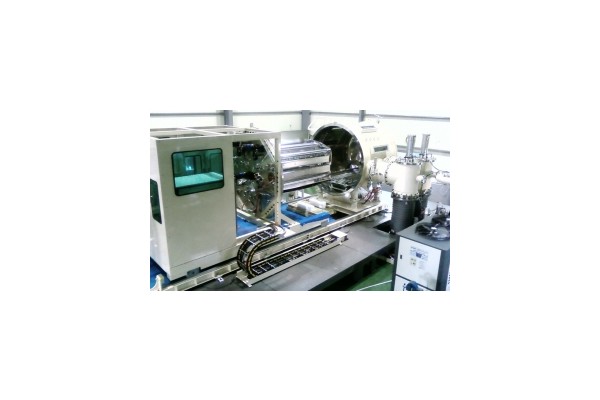

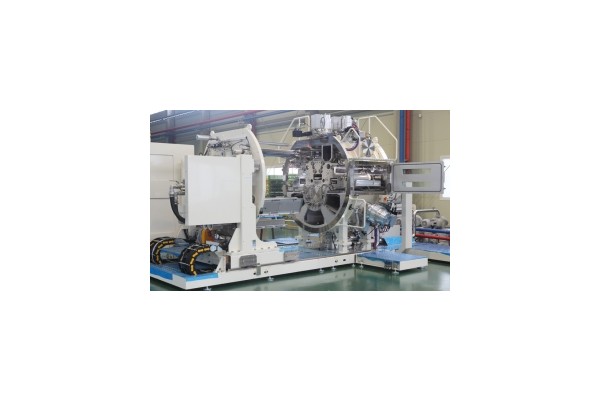

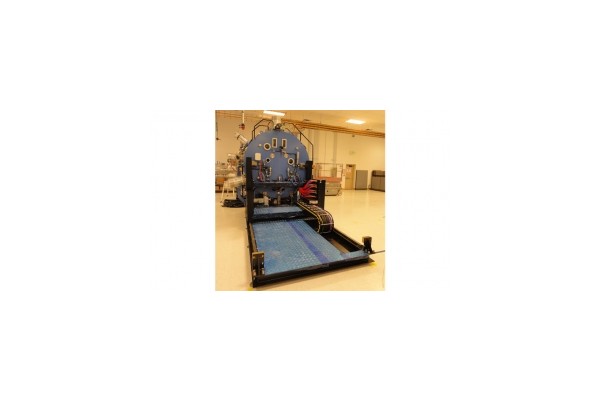

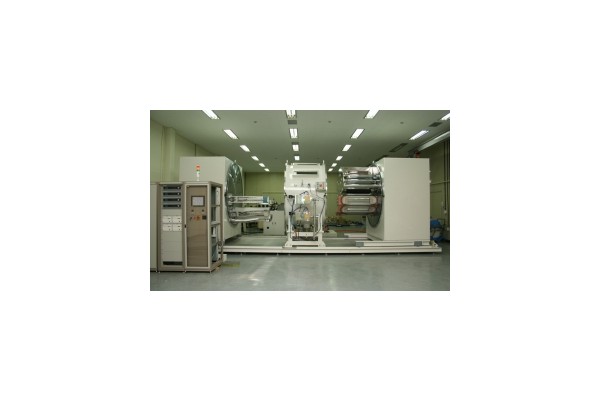

R2R Coating System
MENTO Series
MENTO series is equipment that can be used on various flexible materials, and it is a R2R coating equipment that can be used in various metal materials, or on coating reactive materials with the similar process atmosphere
Application Products
The MENTO-series of Advanced Technologies Co., Ltd separates the metal material or the reactive material to enable continuous coating of hetero-material, and can be applied to various application products
| IT field | ITO touch film, metal mesh touch film, Bezel metallization of display, reflection sheet |
| Energy field | Window film, Thin film solar cell, Li secondary battery |
| Electronic device field | FCCL, EMI shielding film |
| Other industrial field | Exterior application field of the interior |
System specifications
The R2R coating equipment manufacturing method of Advanced Technologies Co., Ltd is based on the customer request specification to manufacture the product in optimum efficiency. Based on this factor, the common specifications below are reflected to manufacture and supply the equipment.
| Chamber type | Circular Type Single Chamber | |||
| Applied material | PET, PI film, other Flexible polymer film, metal film | |||
| Core size | 3inch, 6inch | |||
| Material specification | Width | Length | Thickness (Polymer) | Thickness (Metal) |
| Max. 1,350㎜ | Max.ø550㎜ | Min. 23㎛ | 100㎛ ~ 400㎛ | |
| Winding speed | Max. 20m/min | |||
| Pre-treatment method | Pre-heating | Max. 200℃ | ||
| Plasma surface treatment | DC, Pulse DC, Linear ion beam source | |||
| Coating source | Sputter Source | Single Planar Cathode / Dual Planar Cathode Single Rotary Cathode / Dual Rotary Cathode | ||
| Thermal Source | Crucible, E-Beam | |||
| Plasma assist source | Plasma Assist Source | |||
| Coating material | Metal material | Al, Ti, Cr, Cu, NiCr, Ni, Ag, other metal material | ||
| Reactive material | TiO2, Nb2O5, SiO2, TIO, SiAlOx, MoOx, other nitride / oxide material | |||
| Power Supply | DC, Pulse DC, MF | |||
| Pump | Selection of the pump proper to the equipment specification | |||
| Measuring instrument | Sheet resistance, optic (Transmittance, reflectance, color-difference meter), plasma emission monitor, RGA | |||
