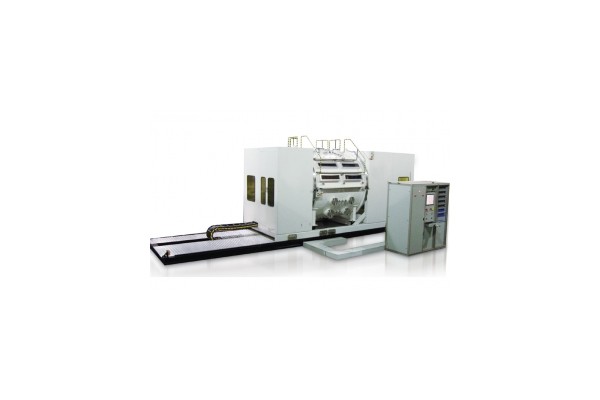

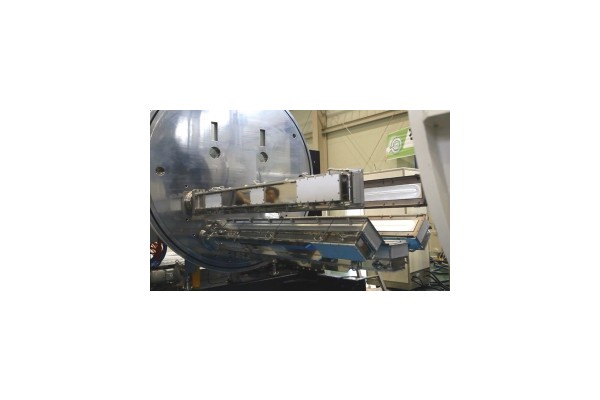

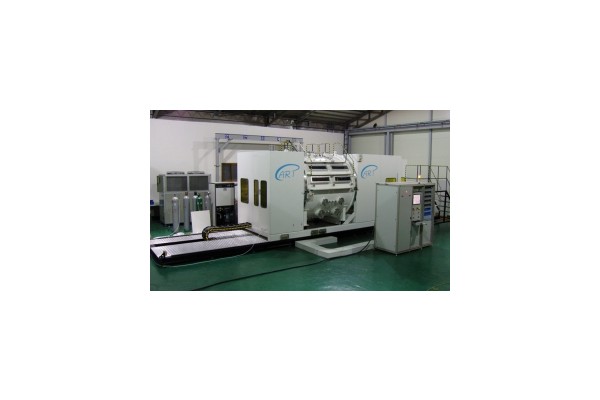

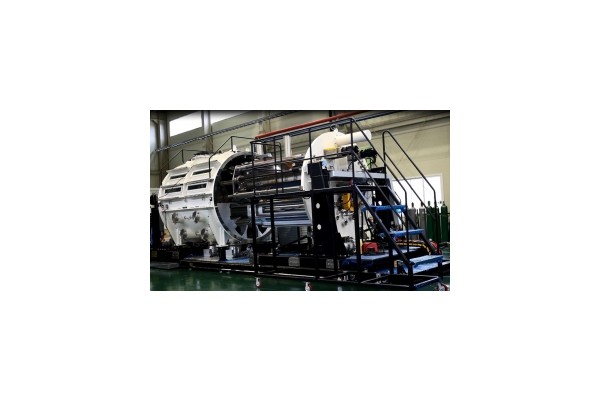

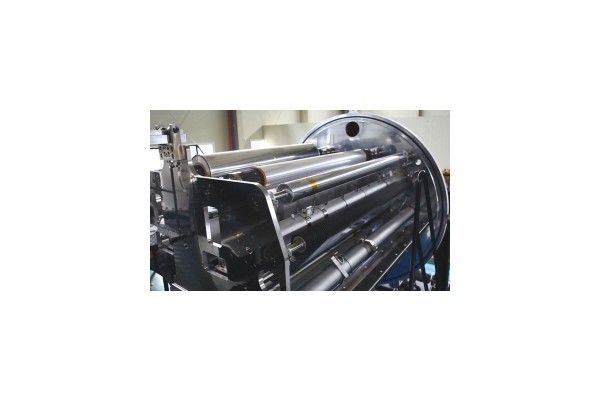

R2R Coating System
TORI Series
TORI series in an equipment coating single thin film and reactive thin film, and it is composed to enable application in application industry fields using large-area / thin polymer film.
Application Products
The TORI series of Advanced Technologies Co., Ltd enable continuous coating of metal material or the reactive material, and can be applied to application products in various industrial fields.
| IT field | Metal mesh touch film, Bezel metallization of display |
| Energy field | Window field |
| Other industrial field | Exterior material application field in the large-area interior |
System Specifications
The R2R coating equipment manufacturing method of Advanced Technologies Co., Ltd is based on the customer request specification to manufacture the product in optimum efficiency. Based on this factor, the common specifications below are reflected to manufacture and supply the equipment.
| Chamber type | Circular Type Single Chamber | |||
| Applied material | PET, PI, other Flexible polymer film | |||
| Core size | 3 inch, 6 inch | |||
| Material specification | Width | Length | Thickness | |
| Max. 1,850㎜ | Max.ø750㎜ | Min. 12㎛ | ||
| Winding speed | Max. 20m/min | |||
| Pre-treatment method | Pre-heating | Max. 200℃ | ||
| Plasma surface treatment | DC, Pulse DC, Linear Ion beam Source | |||
| Coating source | Sputter Source | Single Planar Cathode / Dual Planar Cathode Single Rotary Cathode / Dual Rotary Cathode | ||
| Thermal Source | Crucible, E-Beam | |||
| Plasma Assist Source | Plasma Assist Source | |||
| Coating material | Metal material | Al, Ti, Cr, Cu, NiCr, Ni, Ag, other metal material | ||
| Coating material | TiO2, Nb2O5, SiO2, TIO, SiAlOx, MoOx, other nitride / oxide material | |||
| Power Supply | DC, Pulse DC, MF | |||
| Pump | Selection of the pump proper to the equipment specification | |||
| Measuring instrument | Sheet resistance, optic (Transmittance, reflectance, color-difference meter), plasma emission monitor, RGA | |||
